Carbonil lron Polvo Materia prima magnética Polvo Serie

Carácter del producto The carbonyl iron powder magnetic material raw powder series is suitable for various high-frequency magnetic rings, high current molded inductors (SMD) high-frequency magnetic rings, injection molded inductors, etc. through different particle size combinations.   2.Especificación Carbonil lron Polvo Materia prima magnética Polvo Serie

Marks	Chemical Composition				Physical Property					Remark
					Particle size（μm）			Ddensity (g/cm³)
					D10	D50	D90	Loose Density	Tap Density
XJC-B1	Fe	C	O	N	1.5-2.5	3.0-4.5	6.0-8.0	2.0-3.0	3.5-4.5
	≥97.5	≤0.8	≤0.4	≤0.6
XJC-B2	Fe	C	O	N	1.0-2.0	2.0-4.0	5.0-7.0	2.0-3.0	3.5-4.5
	≥97.5	≤0.8	≤0.4	≤0.6
XJC-B3	Fe	C	O	N	1.0-1.2	1.5-2.2	2.5-3.5	2.0-3.0	3.5-4.5
	≥97.5	≤0.8	≤0.4	≤0.6
XJC-B4	Fe	C	O	N	1.5-2.5	2.5-3.5	5.0-6.5	2.0-3.0	3.5-4.5
	≥97.5	≤0.8	≤0.4	≤0.6
XJC	Fe	C	O	N	1.8-3.5	4.0-5.0	8.5-13.0	2.0-3.0	3.5-4.5
	Bal	≤0.02	≤0.3	≤0.03
Test equipment		1.Laser Particle SizeTester 2.Loose density and compacted de nsity 3.0xygen and Nitrogen Tester,Carbon and Sulfur Tester



Magnetic property Test Conditions	Magnetic ring size	Out diameter:10.73, inner diameter:6,height:3	Magnetic ring density	6.0-6.5
	Coil)	Diameter:0.3, number of turns:20 turns	Test frequenoy	100KHz/1V
	Molding powder loading amount	1g±0.05	Voltage withstand test	100V/35
	Test equipment	1.Digital bridge 2.Insulation impedance

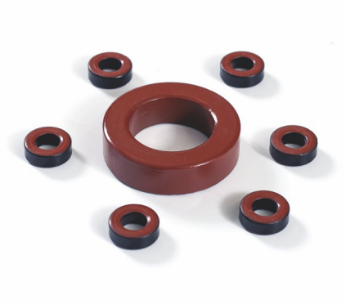

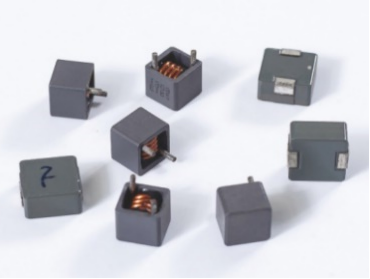

  3.Imágenes de la morfología SEM del polvo   4.Aplicación
