Atomización con gas Polvo de FeSi FeSiAl FeSiCr FeNi
Carácter del producto：

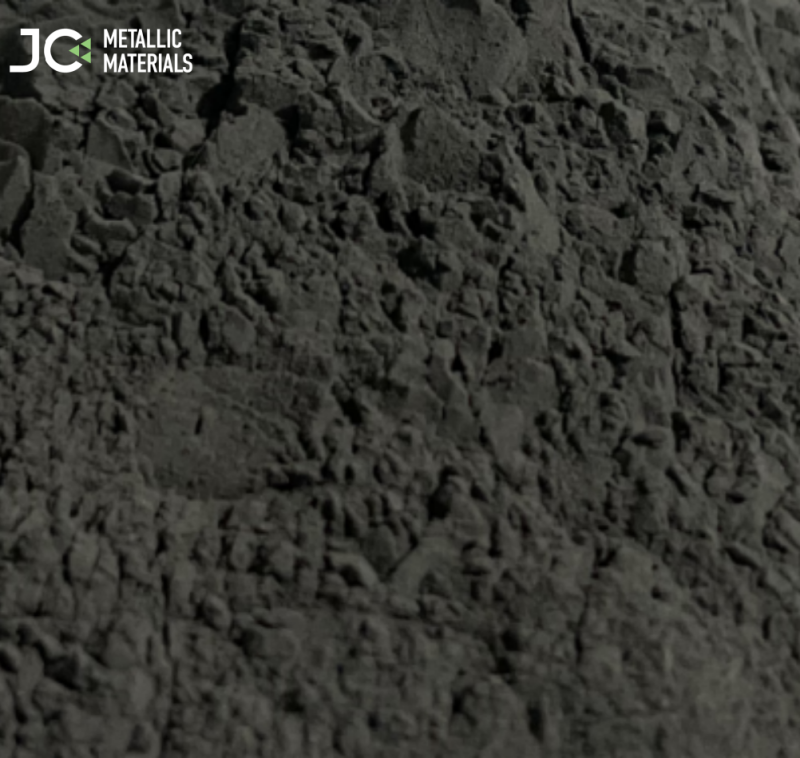

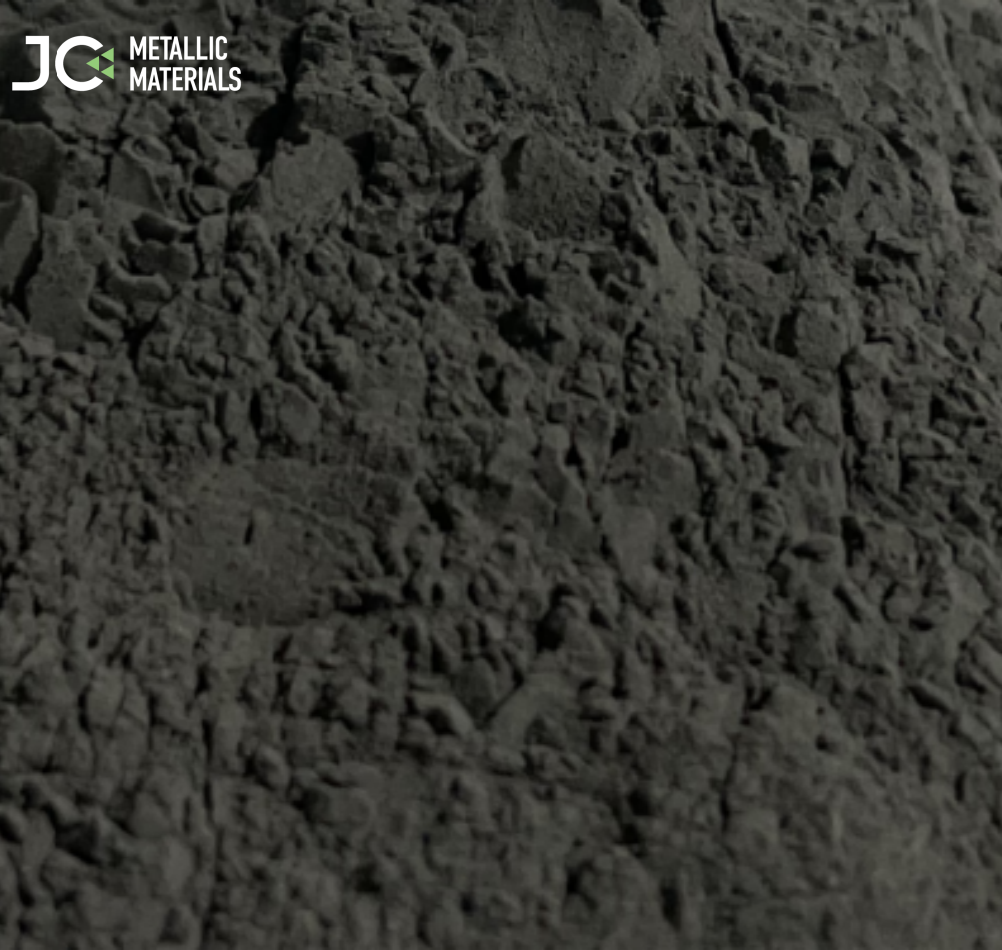

Gas atomization soft magnetic alloy powder is more suitable for high-end magnetic powder cores and other applications with high requirements for powder coating due to its high sphericity and low impurity content. Widely used in PFC choke coils, reactors, APF inductors and other devices.
| Marca | Jinchun |
| Origen | China |
| Nombre del producto | Gas Atomization FeSi/ FeSiAl/ FeSiCr/ FeNi/ powder |

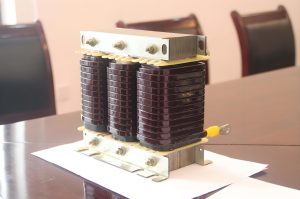

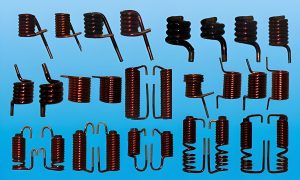

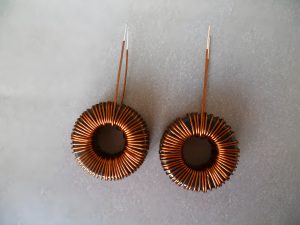

| Aplicación | PFC choke coils, reactors, APF inductors and other devices. |
| Forma | Polvo |
| Color | Metal gray |
| Talla | 10μm， 15μm, 20-40μm,20-55μm,20-60μm |
| Estándar | GB/T 19001-2016/ISO9001: 2015 |
| Pureza | Fe:50%, bal. /Ni:49-51%, 44-46%,/Al, 5.1-5.6%, 5.7-6.2%/ Cr: 1.7-2.3%, 4.2-4.8%, 5.2-5.8%, 4.2-4.8% |
| Material | Iron. Nickel, Chromium, Silicon, Aluminum |
| Embalaje | Bidones de acero |
DETALLE DEL PRODUCTO
DETALLE DEL PRODUCTO
Carácter del producto
Gas atomization soft magnetic alloy powder is more suitable for high-end magnetic powder cores and other applications with high requirements for powder coating due to its high sphericity and low impurity content. Widely used in PFC choke coils, reactors, APF inductors and other devices. We can provide customized Ni, Cr, Si, content in the alloy powders.
2.Especificación
Gas Atomization FeSi/ FeSiAl/ FeSiCr/ FeNi/ powder
3.Typical features
-Excellent DC bias characteristics
-Lower losses
-Good temperature stability
4.Aplicación
| No. | Marks | Chemical Composition（wt %） | ||||||||
| JCMETAl | Si | Al | Cr | Ni | C | O | S | P | Fe | |
| 1 | FeSi-105 | 5.2-5.8 | – | – | – | ≤0.03 | ≤0.06 or ≤0.10 | ≤0.01 | ≤0.02 | Bal |
| 2 | FeSi-101 | 6.2-6.8 | – | – | – | ≤0.03 | ≤0.06 or ≤0.10 | ≤0.01 | ≤0.02 | Bal |
| 3 | FeSi-106 | 4.2-4.8 | – | – | – | ≤0.03 | ≤0.06 or ≤0.10 | ≤0.01 | ≤0.02 | Bal |
| 4 | FeSi-107 | 3.2-3.8 | – | – | – | ≤0.03 | ≤0.06 or ≤0.10 | ≤0.01 | ≤0.02 | Bal |
| 5 | FeSi-112 | 1.7-2.3 | – | – | – | ≤0.03 | ≤0.06 or ≤0.10 | ≤0.01 | ≤0.02 | Bal |
| 6 | FeSiAl-203 | 8.9-9.3 | 5.1-5.6 | – | – | ≤0.03 | ≤0.06 or ≤0.10 | ≤0.01 | ≤0.02 | Bal |
| 7 | FeSiAl-205 | 8.9-9.3 | 5.7-6.2 | – | – | ≤0.03 | ≤0.06 or ≤0.10 | ≤0.01 | ≤0.02 | Bal |
| 8 | FeSiCr-505 | 10.7-11.3 | – | 1.7-2.3 | – | ≤0.03 | ≤0.06 or ≤0.10 | ≤0.01 | ≤0.02 | Bal |
| 9 | FeSiCr-504 | 6.2-6.8 | – | 4.2-4.8 | – | ≤0.03 | ≤0.06 or ≤0.10 | ≤0.01 | ≤0.02 | Bal |
| 10 | FeSiCr-503 | 4.7-5.3 | – | 5.2-5.8 | – | ≤0.03 | ≤0.06 or ≤0.10 | ≤0.01 | ≤0.02 | Bal |
| 11 | FeSiCr-502 | 3.4-4.0 | – | 4.2-4.8 | – | ≤0.03 | ≤0.06 or ≤0.10 | ≤0.01 | ≤0.02 | Bal |
| 12 | FeNi-301 | – | – | – | 49-51 | ≤0.03 | ≤0.08 or ≤0.12 | ≤0.01 | ≤0.02 | Bal |
| 13 | FeNi-306 | – | – | – | 44-46 | ≤0.03 | ≤0.08 or ≤0.12 | ≤0.01 | ≤0.02 | Bal |
| * Products can be customized according to users’ specific requirements. | ||||||||||
Magnetic Core Iron Nickel Alloy Powder is widely usde in PFC choke coils, reactors, APF inductors and other devices
