Spherical Metal Powders GH3536 Superalloy High-temperature alloy Powder

Product Character GH3536 high-temperature alloy is a nickel based alloy with high iron content that has been solid solution strengthened with Cr and Mo elements high temperature alloy, which has good corrosion resistance and oxidation resistance, can be used for a long time at 900 ℃, suitable for manufacturing combustion chamber components of aircraft engines with a short-term working temperature of 1080 ℃ other high-temperature components.   2.Specification GH3536powder

Chemical  Composition (wt.%)
Element	C	Cr	Ni	Co	Mo	Al	Ti	Fe	B
Standard	0.05~0.15	20.5~23.0	Bal.	0.5~2.5	8.0~10.0	≤0.50	≤0.15	17.0~20.0	≤0.010
typical	0.08	21.94	Bal.	1.42	8.97	0.14	0.012	18.98	0.002
Element	Mn	P	S	Cu	W	Si	O	N
Standard	≤1.0	≤0.025	≤0.015	≤0.50	0.2-1.0	≤1.0	≤0.030	≤0.030
typical	0.26	0.005	0.005	0.007	0.55	0.34	0.017	0.024



GH3536	15~53μm Particle Size Distribution			Flow Rate (sec. for 50 g)	Apparent density  (g/cm3)	Tap density  (g/cm3)
	D10	D50	D90
Standard	15~25	30~40	50~60	≤25	≥4.2	≥4.9
typical	23.4μm	36.2μm	55.2μm	20	4.24	5.03

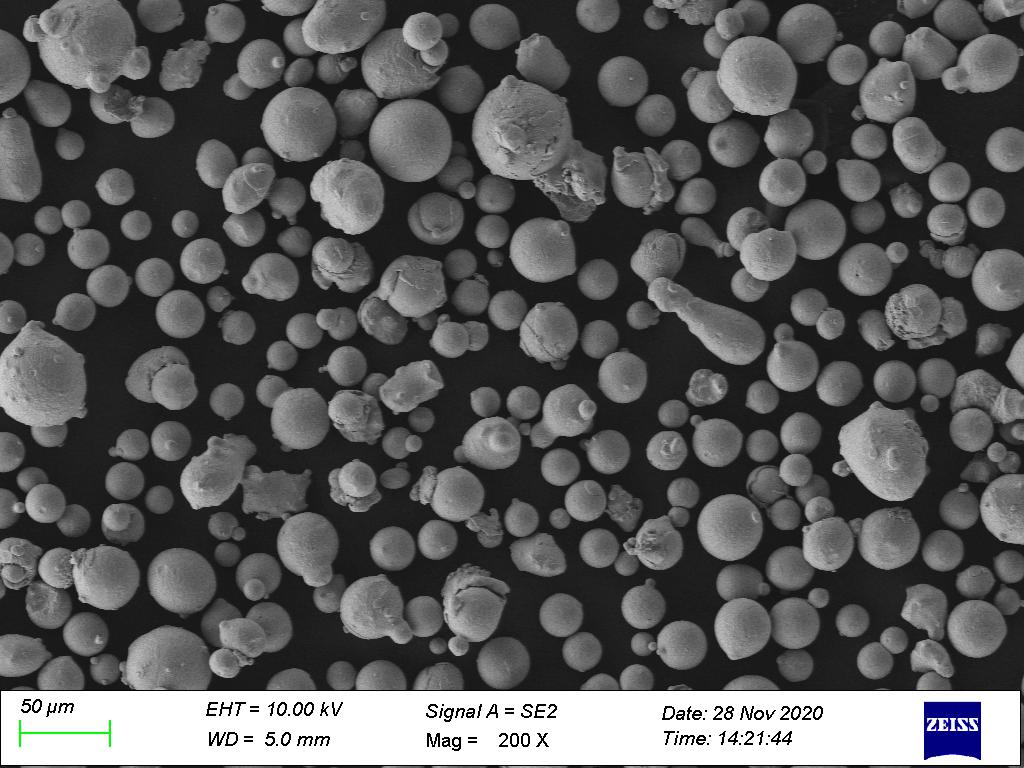

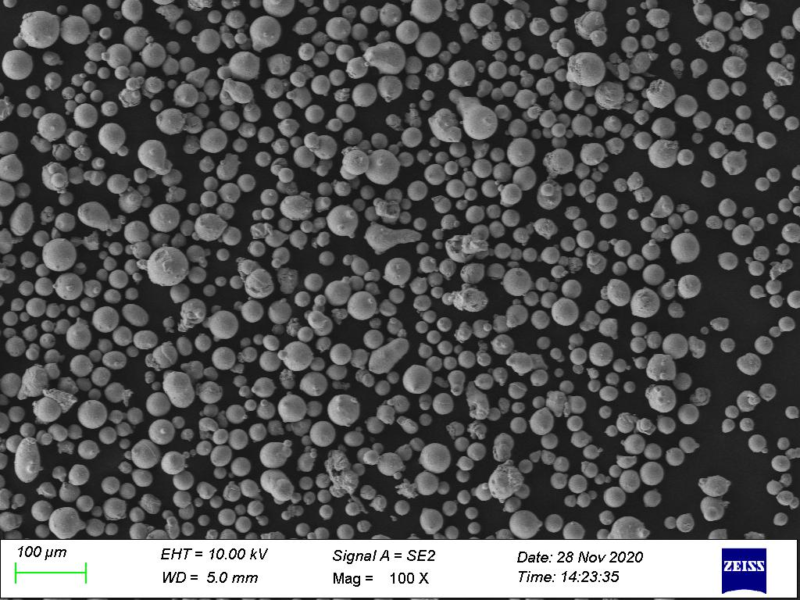

  3.Pictures of Powder SEM morphology Pictures of Production and Test:   4.Application

• GH3536  powder  is applied in combustion chamber components of aircraft engines and other high-temperature components.
