Spherical Metal Powders GH5188 Cobalt based high-temperature alloy powder

Product Character:

GH5188 is a solid solution strengthened cobalt based high-temperature alloy, which is strengthened by adding 14% tungsten to give the alloy excellent high-temperature thermal strength. At the same time, adding a high content of chromium and trace amounts of lanthanum gives the alloy good high-temperature oxidation resistance. Compared to nickel based high-temperature alloys, GH5188 has more good creep resistance, thermal corrosion resistance, fatigue resistance, and high temperature strength. GH5188 has excellent formability, welding and other process properties, making it suitable for manufacturing parts for aircraft engines that require high strength below 980 ℃ and anti-oxidation below 1000 ℃. In the 1980s, GH5188 alloy was applied to components such as vortex plates and flame deflectors in turboshaft eight aircraft engines. Currently, some aircraft engines use GH5188 alloy sheets to prepare high-temperature components such as combustion chamber walls, outer walls, and sealing plates.

Brand Name Jinchun
Origin China
Product name GH5188 powder
Application Aircraft engines, etc.
Shape Powder
Color Metal gray
Size 15~53μm
Standard GB/T 19001-2016/ISO9001: 2015
Purity  Ni: 20-24%, Cr:20-24%, W:13-16%, Co: Bal.
Material Ni, Cr, W, Co
Packing Vacuum packing
Product Character GH5188 is a solid solution strengthened cobalt based high-temperature alloy, which is strengthened by adding 14% tungsten to give the alloy excellent high-temperature thermal strength. At the same time, adding a high content of chromium and trace amounts of lanthanum gives the alloy good high-temperature oxidation resistance. Compared to nickel based high-temperature alloys, GH5188 has more good creep resistance, thermal corrosion resistance, fatigue resistance, and high temperature strength. GH5188 has excellent formability, welding and other process properties, making it suitable for manufacturing parts for aircraft engines that require high strength below 980 ℃ and anti-oxidation below 1000 ℃. In the 1980s, GH5188 alloy was applied to components such as vortex plates and flame deflectors in turboshaft eight aircraft engines. Currently, some aircraft engines use GH5188 alloy sheets to prepare high-temperature components such as combustion chamber walls, outer walls, and sealing plates.   2.Specification GH5188 powder
Chemical  Composition (wt.%)
Element C Cr Ni Co La W Si Fe
Standard 0.05~0.15 20.0~24.0 20.0~24.0 Bal. 0.03~0.12 13.0~16.0 0.2~0.5 ≤3.0
typical 0.11 22.33 22.17 Bal. 0.06 14.91 0.44 0.49
Element Mn P S Cu B O N
Standard ≤1.25 ≤0.02 ≤0.015 ≤0.070 ≤0.015 ≤0.030 ≤0.030
typical 0.26 0.006 0.006 0.021 0.0092 0.017 0.01

GH5188 15~53μm Particle Size Distribution Flow Rate (sec. for 50 g) Apparent density  (g/cm3) Tap density  (g/cm3)
D10 D50 D90
Standard 15~25 30~40 50~60 ≤25 ≥4.55 ≥5.30
typical 22.2μm 35.6μm 55.0μm 17 4.57 5.33

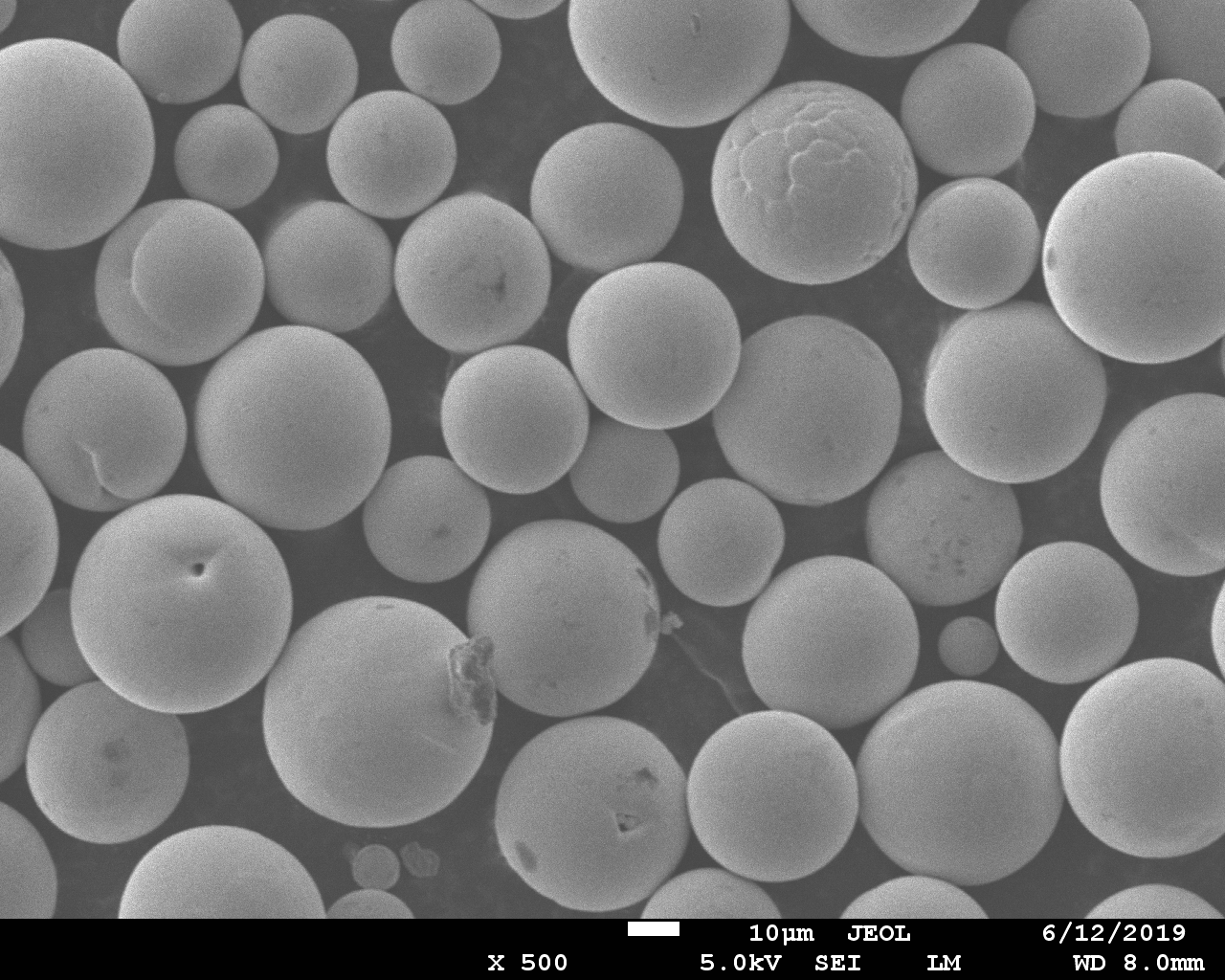

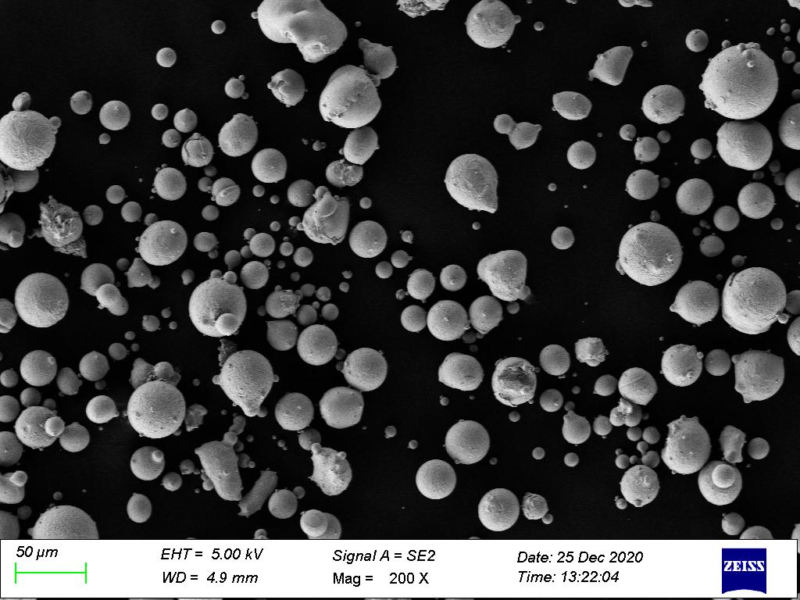

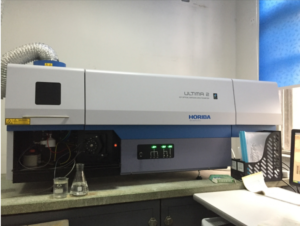

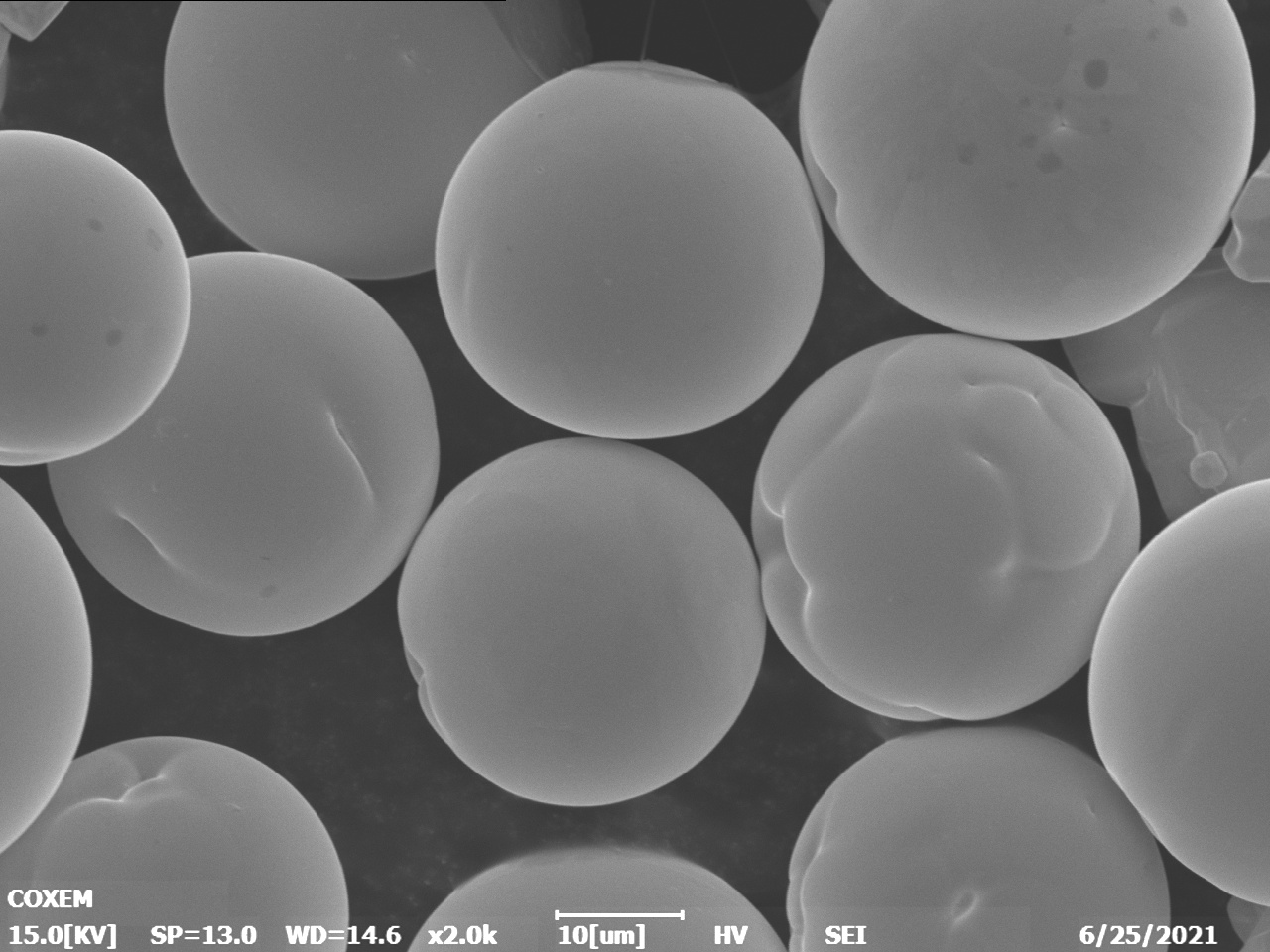

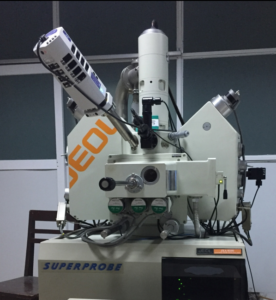

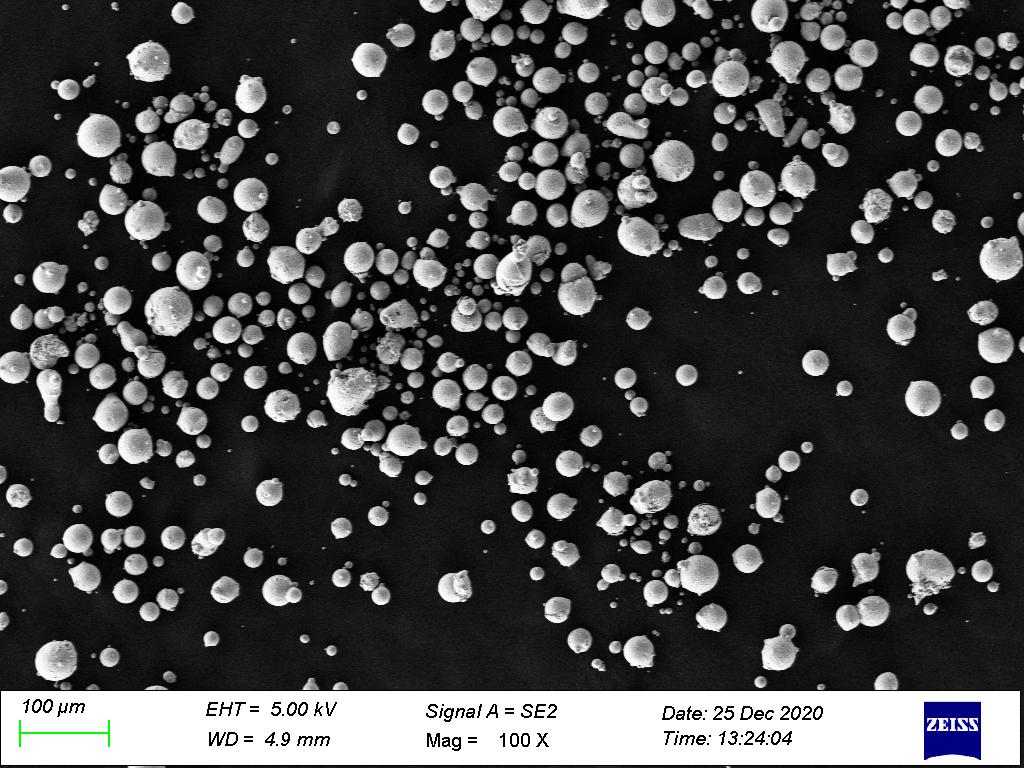

  3.Pictures of Powder SEM morphology Pictures of Production and Test:   4.Application
  • GH5188 has excellent formability, welding and other process properties, making it suitable for manufacturing parts for aircraft engines that require high strength below 980 ℃ and anti-oxidation below 1000 ℃. In the 1980s, GH5188 alloy was applied to components such as vortex plates and flame deflectors in turboshaft eight aircraft engines. Currently, some aircraft engines use GH5188 alloy sheets to prepare high-temperature components such as combustion chamber walls, outer walls, and sealing plates.

5.Quality Assurance
